WICK'D Reviv'D RBA

Regular price£199.99
/
Tax included. Shipping calculated at checkout.

FINISH

You might also need...

  • Worldwide shipping

Reviv'D RBA

The Reviv'D RBA features a 4.5mm inner diameter chimney designed for a smooth vspe.

Top Plate Section

The bell-shaped dome, provides additional space for air travel within the chimney section, whilst removing the top cap will allow users to adjust their build and wicking . Secured with a single o-ring to the sleeve, it has male threading to connect with the chimney. The front and side edges have a prominent chamfer complementing the overall RBA shape.

Sleeve Section
The sleeve serves as a canvas for intricate engravings and striking anodizations. The sleeve also features machined undercuts on both sides of the inner walls, increasing the area size to maximize wicking placement and to aid in more efficient liquid/air transfer.

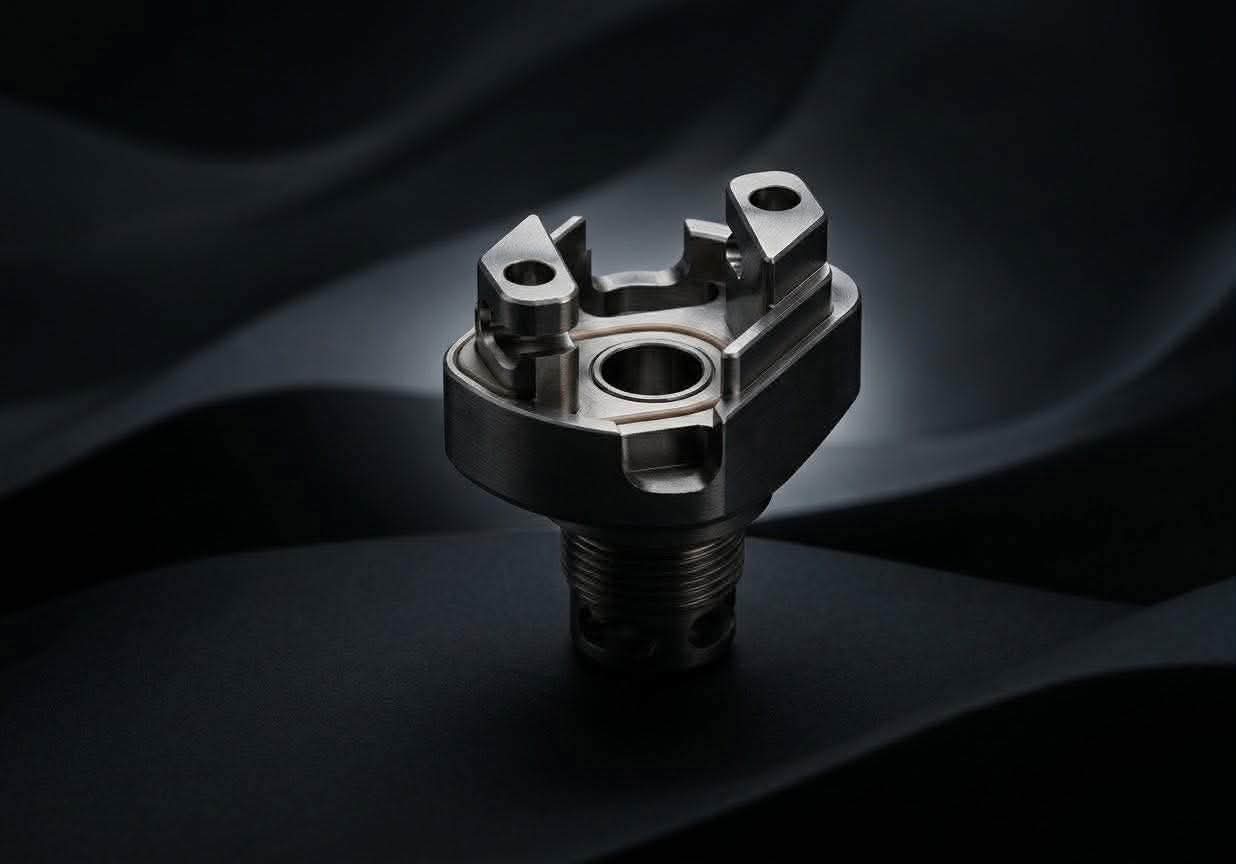

Deck Section

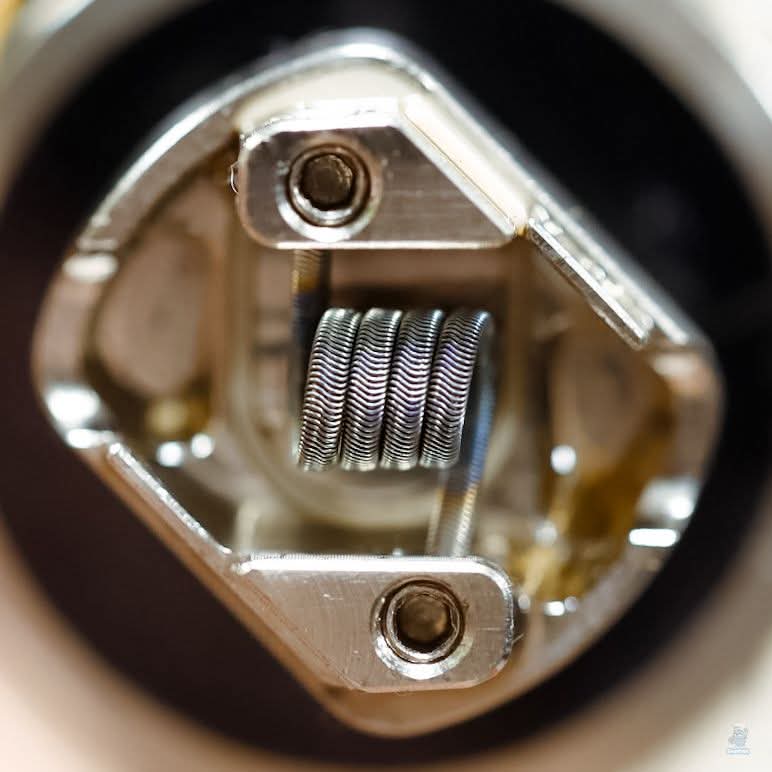

Coming from it’s predecessor which is the REMIX’D, the Reviv'D RBA is sporting an open deck system, offering versatility via a ‘universal coil orientation’ from the four terminal points, allowing for either clockwise and anti-clockwise wrapped coils. The robust positive and negative posts can accommodate wide exotic coils and are secured with M2.5*3mm Allen grub screws. The positive post sits atop a KETRON PEEK insulator, ensuring durability and reliability. The deck also includes a dual port channel system designed for bottom wicking, integrating with the sleeve's inner machining for liquid transfer and efficiency.

Airflow Pins
The Reviv'D RBA includes seven airflow pin variants to cater to different user preferences. Based on feedback from the REMIX’D, the height of the airflow pin heads has been reduced for compatibility with more 510 devices. The solid base of the airflow pins ensures better conductivity.
Available airflow sizes:
MTL
1.2mm

RDL
2mm
2.5mm
 3mm

DTL
3.5mm
4mm
4.5mm



Choice of Materials and Engravings

We have opted for electro-etching to create depth in the engraved surfaces and offer five material/finish options:

-Bare 316-L Stainless Steel with OG LOGO and NRFTW engravings

-Onyx (Black PVD coated) 316-L Stainless Steel with OG logo and NRFTW engravings

-Chloro (Blue PVD coated) 316-L Stainless Steel with OG logo and NRFTW engravings

-Plum (Purple PVD coated) 316-L Stainless Steel with OG logo and NRFTW engravings

-Unicorn Puke (Rainbow Splash/Splatter) Ti22 Grade5 with a subtle “WICK’D” engraving on one side


Please note: Anodized Full-Ti RBA may show a slight resistance variance of +/- 0.05Ω between 510 device and boro mod.
